CIR90A Quarry Mining Borehole Rock Drilling Tools DTH Drilling Hammer

CIR90A Quarry Mining Borehole Rock Drilling Tools DTH Drilling Hammer

CIR SERIES
CIR50/CIR60/CIR65/CIR76/CIR90/CIR110/CIR130/CIR150/CIR170
DESIGN HIGHLIGHTS
1.CIR series is steel valve type hammers designed for high performance at low operating air pressure.
2.CIR series hammers maximizes energy output and reduce service requirements.
3.Wear  sleeve is not reversible.
4.All critical internal components are heat treated under strict control to maximize tool longevity.
EXCLUSIVE FEATURES
The patent of steel valve design increases the wok efficiency, it is 20% at least.
APPLICATIONS
Water Well     Mining   Construction   Quarry

Product DetailsOtherDownloadContact

        Hammer Length without bit:

796(mm)

        Top sub thread:

F48x10PIN

        Outside diameter:

80(mm)

        Weight:

22(KG)

        Bit diameter:

90-120(mm)

        Working Pressure:

5-10(Bar)

        Air consumption:

7-12(M3/min)

        Bit shank:

CIR90

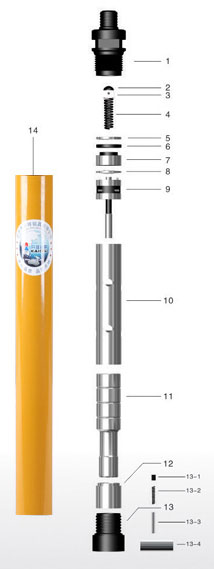

 Item Description

 Part Number

Item Description

 Part Number

                 1.Top Sub

KQ90A-01

                 8.Valve

KQ90A-08

                 2.Cap

KQ90A-02

                 9.Air Distributor

KQ90A-09

                 3.Check Valve

KQ90A-03

                 10.Inner Cylinder

KQ90A-10

                 4.Spring

KQ90A-04

                 11.Piston

KQ90A-11

                 5.Shim

KQ90A-05

                 12.Guide Sleeve

KQ90A-12

                 6.Rubber ring

KQ90A-06

                 13.Driver Sub

KQ90A-13

                 7.Valve cap

KQ90A-07

                 14.Outer Sleeve

KQ90A-14
