110P Bayonet Russia Type DTH Hammers 2.8kw For Mining Rock Drilling

110P Bayonet Russia Type DTH Hammers 2.8kw For Mining Rock Drilling

Product DetailsOtherDownloadContact

        Bit coupling type

Bayonet

        Hammer Length without bit:

662 (mm)

        Top sub thread:

F72x10 BOX

        Outside diameter:

98 (mm)

        Weight:

24(KG)

        Bit diameter:

110-140(mm)

        Working Pressure:

7-11 (Bar)

        Air consumption:

7-12(M3/min)

        Bit shank:

KNSH-110

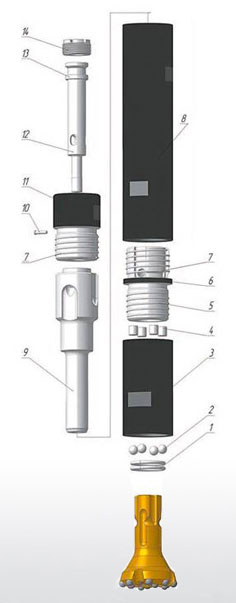

 Item Description

Part Number

 Item Description

 Part Number

                 1.Reatainer Ring

110P-B-01

                 8.Outer Sleeve

110P-B-08

                 2.Ball

110P-B-02

                 9.Piston

110P-B-09

                 3.Driver Sub

110P-B-03

                 10.Retainer

110P-B-10

                 4.Roller

110P-B-04

                 11.Top Sub

110P-B-11

                 5.Thread

110P-B-05

                 12.Air distribution Tube

110P-B-12

                 6.Guide Sleeve

110P-B-06

                 13.Seat

110P-B-13

                 7.Thread

110P-B-07

                 14.Adjusting Nut

110P-B-14
