T38 System Top Hammer Tools

T38 System Top Hammer Tools

Location:Taizhou City, Zhejiang Province, China
Business Type:Manufacturer, Exporter
Brands:“Kaiqiu”, "Weitai","Weihuang"," Lifeng","Pulikabi"
Minimum order quantity: 1 pcs
Price: Consultation
Packing details:Plastic/Wooden case
Delivery time:7 days after get payment
Payment method: T/T , Western Union, money gram, L/C at sight
Usage: Foundation piling. Quarry, mining, soil nailing, water well drilling, tunneling and etc.

Product Details

Bits

Diameter

Buttons.mm

 Angle

Flushing hole

Part No.

mm

in

Front No Size

Gauge NO Size

Front

Gauge

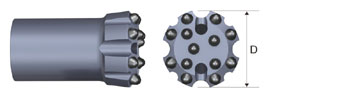

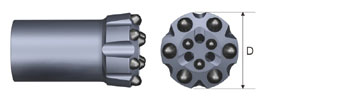

   Button bit,Flat face

57 2 1/4" 3x10 6x 11 35° 2 2 57T38-310/611-T9-01
64 2 1/2" 3x 12 6x 12 35° 2 2 64T38-312/612-T9-01



76 3" 4x10 8x 12 35° 2 2 76T38-410/812-T12-01
89 3 1/2" 5x 12 8x 12 35° 2 2 89T38-512/812-T13-01

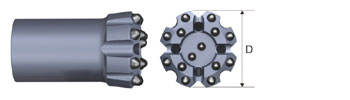

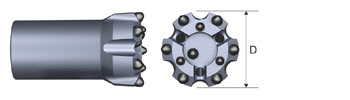

   Button bit,Drop center



64 2 1/2" 4x10 6x11 35° 3 1 64T38-410/611-TA10-01
70 2 3/4" 4x10 4x11 40° 3 1 70T38-410/611-TA10-01
76 3" 4x11 6x13 35° 3 1 76T38-411/613-TA10-01
89 31/2" 5x 11 6x13 35° 3 1 89T38-511/613-TA11-01

76 3" 5x12 8x 12 35° 4 1 76T38-512/812-TA13-01
89 3 1/2" 6x 11 8x 12 35° 4 1 89T38-611/812-TA14-01



Bits

Diameter

Buttons.mm

 Angle

Flushing hole

Part No.

mm

in

Front No Size

Gauge NO Size

Front

Gauge

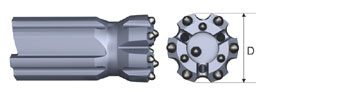

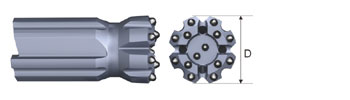

   Button bit,Retrac,Drop center

64 21/2" 4x 10 6x 11 35° 3 1 64T38-410/611-Y10-01
70 2 3/4" 4x 10 6x 11 40° 3 1 70T38-410/611-Y10-01
76 3" 4x 10 6x 12 35° 3 1 76T38-410/612-Y10-01

76 3" 6x 10 8x 11 35° 4 1 76T38-610/812-Y14-01
89 3 1/2" 8x 12 8x 12 35° 4 1 89T38-611/812-Y14-01



Drill Rod

Length

Diameter Weight approx kg Part No.

mm

 Foot

mm

inch

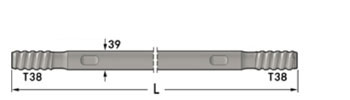

   Extension rod T38-Round39-138
   Flushing hole 14.5mm.
   Wrench flat 32mm.

1220

1525

1830

2435

3050

3660

3965

4270

4880

5530

6095

4'

5'

6'

8'

10'

12'

13'

14'

16'

18'11/2"

20'

39

39

39

39

39

39

39

39

39

39

39

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

10.2

12.8

15.3

20.4

25.5

30.9

33.2

35.7

41.0

46.3

50.9

23839-T38-1220-23

23R39-T38-1525-23

23R39-T38-1830-23

23R39-T38-2435-23

23R39-T38-3050-23

23R39-T38-3660-23

23R39-T38-3965-23

23R39-T38-4270-23

23R39-T38-4880-23

23R39-T38-5530-23

23R39-T38-6095-23

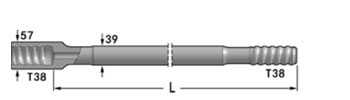

   UF-rod T38-Rourd39-138
   Flushing hole 14.5mm

915

1220

1525

1830

3050

3660

4270

4880

5530

6095

3'

4'

5'

6'

10'

12'

14'

16'

18'11/2"

20'

39

39

39

39

39

39

39

39

39

39

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

1 1/2

10.7

13.3

15.8

18.3

28.5

33.6

38.7

43.7

49.2

53.9

24R39-T38/57-0915-23

24R39-T38/57-1220-23

24R39-T38/57-1525-23

24R39-T38/57-1830-23

24R39-T38/57-3050-23

24R39-T38/57-3660-23

24R39-T38/57-4270-23

24R39-T38/57-4880-23

24R39-T38/57-5530-23

24R39-T38/57-6095-23

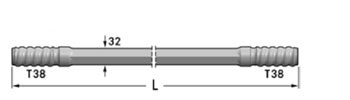

   Hex. extension rod T38-Hex32-T38
   Flushing hole 9.6mm

1220

1830

2435

3050

3660

4'

6'

8'

10'

12'

32

32

32

32

32

1 1/4

1 1/4

1 1/4

1 1/4

8.6

12.6

16.6

20.8

24.9

23H32-T38-1220-23

23H32-T38-1830-23

23H32-T38-2435-23

23H32-T38-3050-23

23H32-T38-3660-23

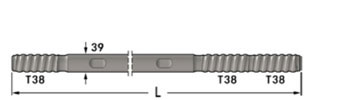

   Double thread rod T38-Round39-T39
   Flushing hole 14.5mm.
   Wrench flat 32m.

3050

3660

10'

12'

46

46

1 3/4

1 3/4

25.7

30.9

23R39-T38/2T38-3050-23

23R39-T38/2T38-3660-23

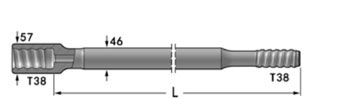

   Guide speedrod T38-Round46-T38
   Flushing hole 17mm.

1830

3050

3660

4270

4880

5530

6095

6'

10'

12'

14'

16'

18'11/2"

20'

46

46

46

46

46

46

46

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

23.5

37.2

44.0

50.9

57.7

65.0

71.3

24R46-T38/57-1830-23

24R46-T38/57-3050-23

24R46-T38/57-3660-23

24R46-T38/57-4270-23

24R46-T38/57-4880-23

24R46-T38/57-5530-23

24R46-T38/57-6095-23



Guide Tube

Length

Diameter Weight approx kg Part No.

mm

 inch

mm

inch

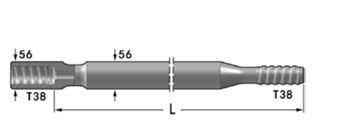

   Guide tube
   D56 for bits from 64-76mm and D64 for bits from 76-89



1220

1525

1830

3050

3660

4920

3660

4'

5'

6'

10'

12'

16'2"

12'

56

56

56

56

56

56

64

2 1/8

2 1/8

2 1/8

2 1/8

2 1/8

2 1/8

2 1/2

12.6

14

17.4

28.3

32.8

47.9

51

24G56-T38/56-1220-23

24G56-T38/56-1525-23

24G56-T38/56-1830-23

24G56-T38/56-3050-23

24G56-T38/56-3660-23

24G56-T38/56-4920-23

24G56-T38/56-3660-23



Coupling

Length

Diameter Thread Weight approx kg Part No.

mm

 inch

mm

inch

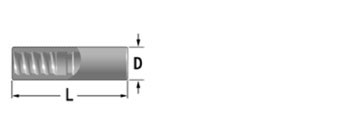

   Coupling sleeves





190 7 1/2 55 2 5/32 T38 2.1 7314-3801
