T45 System Top Hammer Tools

T45 System Top Hammer Tools

Location:Taizhou City, Zhejiang Province, China
Business Type:Manufacturer, Exporter
Brands:“Kaiqiu”， "Weitai"，"Weihuang"，" Lifeng"，"Pulikabi"
Minimum order quantity: 1 pcs
Price: Consultation
Packing details:Plastic/Wooden case
Delivery time:7 days after get payment
Payment method: T/T , Western Union, money gram, L/C at sight
Usage: Foundation piling. Quarry, mining, soil nailing, water well drilling, tunneling and etc.

Product Details

Bits

Diameter

Buttons.mm

 Angle

Flushing hole

 Part No.

mm

in

Front No Size

Gauge NO Size

Front

 Gauge

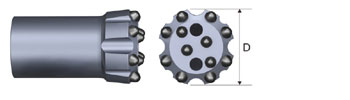

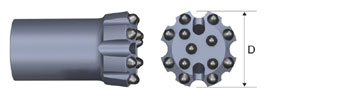

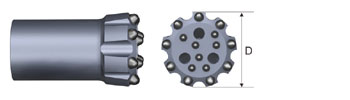

   Button bit,Flat face
76 3' 4x12 8x 12 35° 2 2 76T45-412/812-T12-01
89 3 1/2" 5x 12 8x 12 35° 2 2 89T45-512/812-T13-01
89 31/2" 6x 12 8x 12 35° 2 2 89T45-612/812-T14-01

76 3' 6x10 8x 11 35° 2 2 76T45-610/811-T14-01
89 3 1/2" 5x 12 8x 12 35° 2 2 89T45-512/812-T13-01




 89 3 1/2" 6x12 9x 12 35° 2 2 89T45-612/912-T15-01
102 4' 7x 12 9x 12 35° 3 - 102T45-712/912-T16-01
102 4' 7x 12 9x 13 35° 3 - 102T45-712/913-T16-01

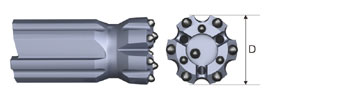

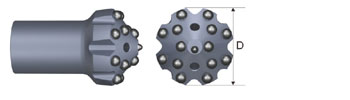

   Button bit,Retrac,Drop center
76 3" 4x11 6x 13 35° 3 - 76T45-411/613-Y10-01
76 3" 4x 10 6x 12 35° 3 - 76T45-410/612-Y10-01
89 3 1/2" 5x 12 6x 13 35° 3 - 89T45-512/613-Y11-01

76 3" 6x10 8x 11 35° 4 1 76T45-610/811-Y11-01
89 3 1/2"

2x 10

4x 12

 8x 12 35° 4 - 89T45-6/812-Y14-02
89 3 1/2" 5x 12 8x 12 35° 4 - 89T45-512/812-Y13-01
102 4" 6x 12 8x 14 35° 4 - 102T45-612/814-Y14-01
115 4 1/2" 6x 13 8x 14 35° 4 - 115T45-613/814-Y14-01



Bits

Diameter

Buttons.mm

 Angle

Flushing hole

 Part No.

mm

in

Front No Size

Gauge NO Size

Front

 Gauge

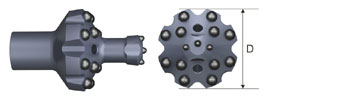

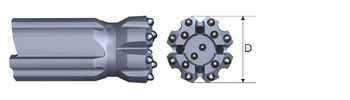

   Reaming bit,T45
127 5"

1x 13

8x 13

 8x 14 35° 2 - 127T45-17-K-01
152 6"

1x 14

9x 14

 9x 14 35° 2 - 152T45-19-K-01
   Reaming bit,T45
115 4 1/2"

3x 10

6x 12

 8x12 35° 2 - 115T45-17-K-02
127 5"

3x 10

6x 14

 8x14 35° 2 - 127T45-17-K-02
152 6"

6x 12

6x 16

 9x16 35° 2 - 152T45-21-K-02



Drill Rod

Length

 Diameter Weight approx kg Part No.

mm

 Foot

mm

inch

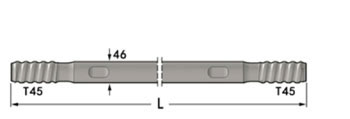

   Extension rod T45-Round45-145
   Flushing hole 17mm
   Wrench flat 38mm

1830

2435

3050

3660

4270

5530

6095

6'

8'

10'

12'

14'

18'

20'

46

46

46

46

46

46

46

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

21.6

28.3

35.2

42.1

48.9

63.0

69.3

23R46-T45-1830-23

23R46-T45-2435-23

23R46-T45-3050-23

23R46-T45-3660-23

23R46-T45-4270-23

23R46-T45-5530-23

23R46-T45-6095-23

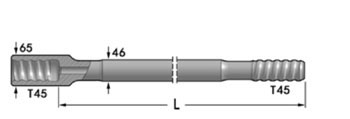

   MF-rpd T45-Round46-T45
   Flushing hole 17mm.

1525

1830

3050

3660

4270

5530

6095

5'

6'

10'

12'

14'

18'

20'

46

46

46

46

46

46

46

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

1 3/4

21.2

24.6

38.2

45.0

51.9

66.0

72.3

24R46-145/65-1525-23

24R46-145/65-1830-23

24R46-T45/65-3050-23

24R46-T45/65-3660-23

24R46-T45/65-4270-23

24R46-T45/65-5530-23

24846-T45/65-6095-23

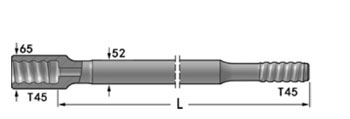

   Guide speedrod T45-found52-145
   Flushing hole 21.5mm

3050

3660

4270

5530

6095

10'

12'

14'

18'

20'

52

52

52

52

52

2

2

2

2

2

46.6

55.8

63.8

81.5

89.4

24R52-T45/65-3050-23

24R52-T45/65-3660-23

24R52-T45/65-4270-23

24852-T45/65-5530-23

24R52-T45/65-6095-23

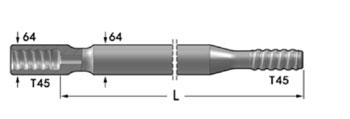

Guide Tube

Length

 Diameter Weight approx kg Part No.

mm

 inch

mm

inch

   Guide tube
   D64 for bits from 76-89mm and D76 for bits frcm 89-102mm

1220

1525

1830

3050

3660

1830

3660

4'

5'

6'

10'

12'

6'

12'

64

64

64

64

64

76

76

2 1/8

2 1/8

2 1/8

2 1/8

2 1/8

3

3

12.6

14.0

17.4

28.3

32.8

40.0

77.8

24G64-T45/64-1220-23

24G64-T45/64-1525-23

24G64-T45/64-1830-23

24G64-T45/64-3050-23

24G64-T45/64-3660-23

24G64-T45/76-1830-23

24G64-T45/76-3660-23



Coupling

Length

 Diameter Thread Weight approx kg Part No.

mm

 inch

mm

inch

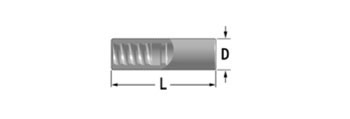

   Coupling sleeves



210

210

8 1/4

8 1/4

63

63

2 33/64

2 37/64

T45

T45

3.0

3.3

31-T45-63-210-23

31-T45-66-210-23
