T51 System Top Hammer Tools

T51 System Top Hammer Tools

Location:Taizhou City, Zhejiang Province, China
Business Type:Manufacturer, Exporter
Brands:“Kaiqiu”, "Weitai","Weihuang"," Lifeng","Pulikabi"
Minimum order quantity: 1 pcs
Price: Consultation
Packing details:Plastic/Wooden case
Delivery time:7 days after get payment
Payment method: T/T , Western Union, money gram, L/C at sight
Usage: Foundation piling. Quarry, mining, soil nailing, water well drilling, tunneling and etc.

Product Details

Bits

Diameter

Buttons.mm

 Angle

Flushing hole

Part No.

mm

in

Front No Size

Gauge NO Size

Front

Gauge

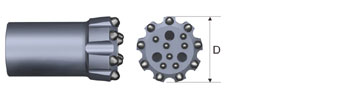

   Button bit,Flat face

89 3 1/2" 5x12 8x 12 35° 2 2 89T51-512/812-T13-01
89 3 1/2" 6x 12 8x 12 35° 2 2 89T51-612/812-T14-01
102 4" 4x 14 8x 14 35° 2 2 102T51-414/814-T12-01

89 3 1/2" 5x 12 8x 12 35° 2 2 89T51-512/812-T13-02
102 4" 6x 14 8x 14 35° 2 1 102T51-614/814-T14-02
115 4 1/2" 6x 14 8x 14 35° 2 1 115T51-614/814-T14-02

  89 3 1/2" 6x12 9x 12 35° 3 - 89T51-612/912-T15-01
102 4" 7x 12 9x 12 35° 3 - 102T51-712/912-T16-01
102 4" 7x 12 9x 13 35° 3 - 102T51-712/913-T16-01
115 4 1/2" 7x 13 9x 13 35° 3 1 115T51-713/913-T16-01
115 4 1/2" 6x 14 9x 14 35° 3 1 115T51-614/914-T15-01

89 3 1/2"

2x 10

4x 12

8x 12 35° 4 - 89T51-610/812-TA14-01
89 3 1/2" 5x 12 8x 12 35° 4 - 89T51-512/812-TA13-01
102 4" 6x 12 8x 13 35° 4 - 102T51-612/813-TA14-01
102 4" 6x 12 8x 14 35° 4 - 102T51-612/814-TA14-01
115 4 1/2" 6x 14 8x 14 35° 4 - 115T51-614/814-TA14-01
115 4 1/2" 6x 13 8x 14 35° 4 - 115T51-613/814-TA14-01
127 5" 7x 14 8x 14 35° 4 - 127T51-714/814-TA15-01
140 5 1/2" 7x 16 8x 16 35° 4 - 140T51-716/816-TA15-01
152 6" 8x 16 8x 16 35° 4 - 152T51-816/816-TA16-01



Bits

Diameter

Buttons.mm

 Angle

Flushing hole

Part No.

mm

in

Front No Size

Gauge NO Size

Front

Gauge

   Button bit,Flat face

89 3 1/2" 5x12 8x 12 35° 2 2 89T51-512/812-Y13-01
89 3 1/2" 6x 12 8x 12 35° 2 2 89T51-612/812-Y14-01
102 4" 6x 14 8x 14 35° 2 2 102T51-614/814-Y12-01

89 3 1/2" 5x12 8x 12 35° 2 2 89T51-512/812-Y13-02
102 4" 6x 13 8x 14 35° 2 1 102T51-613/814-Y14-02
115 4 1/2" 6x 13 8x 14 35° 2 1 115T51-613/814-Y14-02

89 3 1/2" 6x12 9x 12 35° 3 - 89T51-612/912-Y15-01
102 4" 7x 12 9x 12 35° 3 - 102T51-712/912-Y16-01
102 4" 7x 12 9x 13 35° 3 - 102T51-712/913-Y16-01
115 4 1/2" 7x 13 9x 13 35° 3 - 115T51-713/913-Y16-01
115 4 1/2" 6x 14 9x 14 35° 3 - 115T51-614/914-Y15-01
127 5" 8x 14 9x 14 35° 3 - 127T51-814/914-Y17-01
140 5 1/2" 10x 14 9x 16 35° 3 - 140T51-1014/916-Y19-01

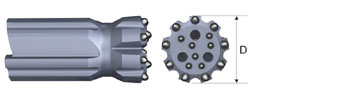

   Button bit,Retrac,Drop center
89 3 1/2"

2x 10

4x 12

8x 12 35° 4 - 89T51-610/812-YA14-01
89 3 1/2" 5x12 8x 12 35° 4 - 89T51-512/812-YA13-01
102 4" 6x 12 8x 13 35° 4 - 102T51-612/813-YA14-01
102 4" 6x 12 8x 14 35° 4 - 102T51-612/814-YA14-01
115 4 1/2" 6x 14 8x 14 35° 4 - 115T51-614/814-YA14-01
115 4 1/2" 6x 13 8x 14 35° 4 - 115T51-613/814-YA14-01
127 5" 7x 14 8x 16 35° 4 - 127T51-714/816-YA15-01
140 5 1/2"6" 7x 16 8x 16 35° 4 - 140T51-716/816-YA15-01
152 6" 8x 16 8x 16 35° 4 - 152T51-816/816-YA16-01
   Reaming bit,T51
127 5"

1x 13

8x 13

8x 14   2 - 127T51-17-K-01
152 6"

1x 14

9x 14

9x 14   2 - 152T51-19-K-01





Drill Rod

Length

Diameter 2Weight approx kg2 Part No.

mm

 Foot

mm

inch

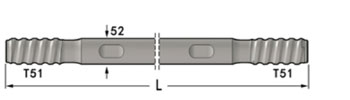

   Extension rod T51-Round52-T51
   Flushing hole 21.5mm
   Wrench flat 45mm



3050

3660

4270

4880

5530

6095

10'

12'

14'

16'

18'

20'

52

52

52

52

52

52

2

2

2

2

2

2

45.3

54.1

63.0

71.8

81.2

89.4

23R52-T51-3050-23

23R52-151-3660-23

23R52-T51-4270-23

23R52-T51-4880-23

23852-T51-5530-23

23R52-T51-6095-23

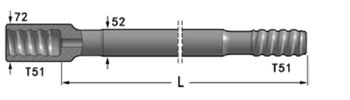

   MF-rod T51-Round52-T51
   Flushing hole 21.5mm



1525

1830

3050

3660

4270

4880

5530

6095

5'

6'

10'

12'

14'

16'

18'

20'

52

52

52

52

52

52

52

52

2

2

2

2

2

2

2

2

26.2

30.6

48.3

57.1

66.0

74.8

84.2

90.4

24R52-T51/72-1525-23

24R52-151/72-1830-23

24R52-151/72-3050-23

24R52-T51/72-3660-23

24R52-T51/72-4270-23

24R52-T51/72-4880-23

24R52-T51/72-5530-23

24R52-T51/72-6095-23



Guide Tube

Length

Diameter Weight approx kg Part No.

mm

 inch

mm

inch

   Quide tube
   D76 for bits from 89-102ma and D87 for bits from 102-127m

1830

3660

3660

6'

12'

12'

76

76

87

3

3

3 1/2

42.0

81.0

86.0

24G76-151/76-1830-23

24G76-T51/76-3660-23

24G87-T51/87-3660-23

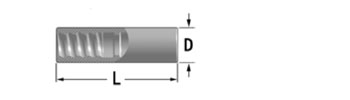

Coupling

Length

Diameter Thread Weight approx kg Part No.

mm

 inch

mm

inch



   Coupling sleeves



225

225

235

235

8 7/8

8 7/8

9 1/4

9 1/4

71

76

72

77

2 51/64

3

2 7/8

3 1/32

T51

T51

T51

T51

4.6

4.8

4.7

4.9

31-T51-71-225-23

31-T51-76-225-23

31-TS1-72-235-23

31-T51-77-235-23
